Scrap industrial copper wire granulator for copper recovery

Function:

Scrap industrial copper wire granulator machine

Scrap industrial copper wire granulator machine can process the waste copper wires or copper cables to separate the copper and plastic out, and realize the recycling and reuse of resources.

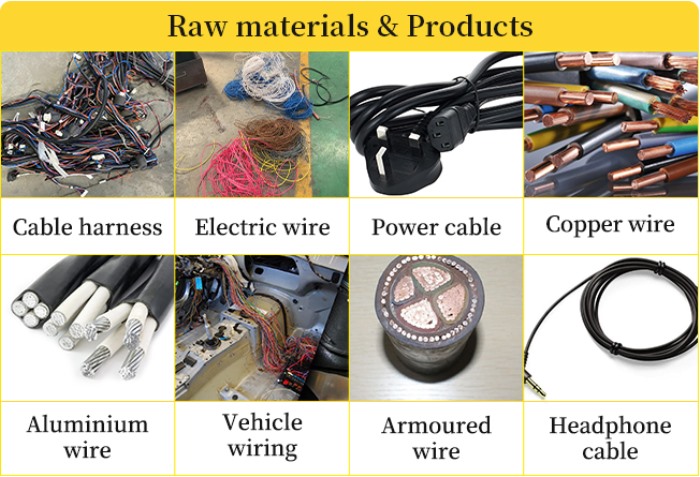

Raw materials:

Different types of scrap cable wires

Scrap industrial copper wire granulator machine can process various types of waste cable wires, including automobile electrical routes, car bottom lines, motorcycle electric wires, computer case lines, communication wires, scrap industrial cables, and household square lines, armored cable, whether it is copper wire or aluminum wire.

Processing capacity:

The processing capacity of the scrap industrial copper wire granulator machine varies from 200-1000kg/h. And if you have large capacity needs, our engineer team can customize appropriate machine accordingly.

Working process:

The working process may be a little differ, due to the different configuration of different capacity, but the general workflow of the scrap industrial copper wire granulator machine typically involves the following steps:

Shredding: The waste cable wires will be shredded into small pieces, usually around 5-8cm in size, using a double-shaft shredder.

Iron removal: A magnetic separator is used to remove any iron particles present in the shredded material.

Crushing: The small shredded pieces are further crushed into smaller particles using a knife crusher.

Working process

Air separation: An air separator is adopted to separate the copper from the plastic based on their different gravity properties. This process achieves a separation rate of 97-98%.

Electrostatic separation: An electrostatic separator is utilized to separate the fine copper in the plastic, according to the different conductivity. This process achieves a separation rate of up to 99%.

Dust removal: A pulse dust and cyclone dust removal system is employed to collect the dust generated during the process, achieving a dust collection rate of 99.5%.

Final products and application:

Final products and application

The final products obtained from the scrap industrial copper wire granulator machine are copper and plastic granules. The copper can be sold directly in the metal trading market, or used to produce new products, such as copper ingots or copper electrolysis. Due to high purity and good quality, the price is pretty considerable. As for the plastic, it can also be sold directly, or pelletized to create other products, such as wire covers, trays, blister sheets, mice, keyboards, etc.

Project cases:

Advantages:

Excellent material: The machine is made of high-quality materials, such as SKD-11 alloy for the crusher blade, ensuring durability and wear resistance specifically for processing waste cables and wires.

High separating rate: The machine utilizes air separation and electrostatic separation processes to achieve a high separation rate of 99% for copper and plastic materials.

Environmental friendly: The machine eliminates the traditional methods of burning wires and cables or corroding the cable cover. Instead, it recovers copper through physical crushing, separation, and dust collection, resulting in minimal pollution to the environment.

Our Services:

Pre sale Service

1. Visit the factory production workshop

2. One-to-one equipment configuration plan

3. Plan the equipment placement site

On-sale Service

On-sale service

1. Check the production conditions of the machine

2. Communicate the progress of equipment manufacturing

After sale Service

1. One-year warranty

2. Guide equipment installation and commissioning

3. Technical training

Henan Doing Environmental Protection Technology Co., Ltd has extensive experience in manufacturing scrap industrial copper wire granulator machines for over 12 years. If you are interested in our scrap industrial copper wire granulator machine, please feel free to contact us.
