Biochar production from agricultural waste

The production process of agricultural waste into biochar is as follows: first collect various raw materials, pre-treat (drying, crushing); carbonize at 400-700℃ for about 30 minutes in a low-oxygen or oxygen-free environment, and recover mixed combustible gas as equipment fuel; then cool the biochar with a circulating water cooling device; then process according to the purpose, such as direct combustion, grinding for soil improvement, chemical activation for adsorption; finally, select packaging materials and label according to needs.

1. Agricultural waste collection and preparation

Raw materails of biochar production from agricultural waste

Agricultural waste is a high-quality raw material for preparing biochar. The following are the popular countries and their agricultural waste raw materials that we have listed for agricultural waste carbonization business:

Southeast Asian countries (such as Vietnam, Thailand, Malaysia, etc.): palm shells, coconut shells, etc.

Americas (such as the United States, Canada, Mexico, Brazil, etc.): representative raw materials: corn stalks, wheat stalks, cotton stalks, soybean stalks, etc.

Europe (such as Germany, Italy, France, the United Kingdom, Spain, etc.): grape vines, olive tree prunings, barley straw, etc.

2. Pretreatment of agricultural waste

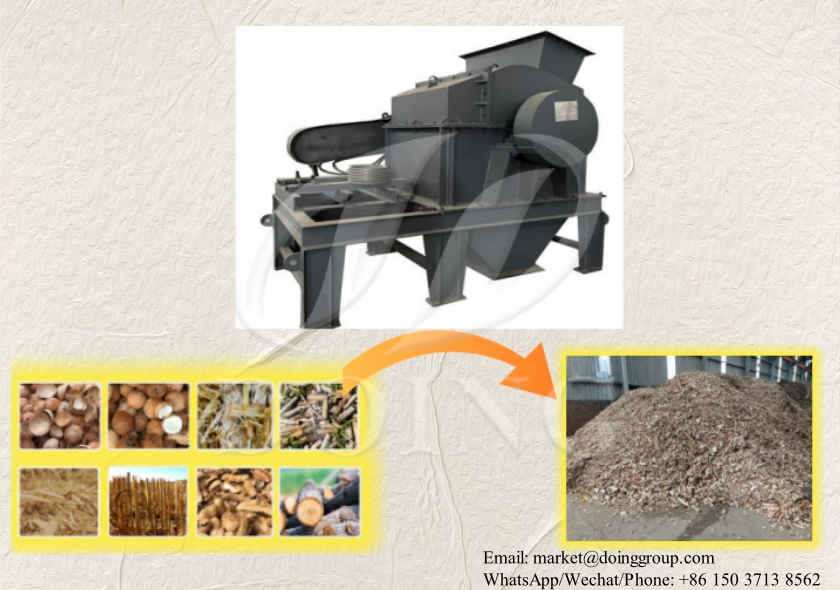

Crushed biochar production from agricultural waste

First, dry the agricultural waste to reduce the moisture content to less than 20%, laying the foundation for subsequent efficient conversion. Secondly, use the DOING double-shaft crusher to crush the dried agricultural waste to increase its surface area for carbonization reaction, thereby improving the efficiency of agricultural waste into biochar.

3. Carbonization reaction of agricultural waste

Carbonization furnace of DOING agricultural waste carbonization equipment

The pretreated waste enters the carbonization furnace through the automatic feeding system of DOING agricultural waste carbonization equipment. According to the type and nature of agricultural waste, in a low-oxygen or oxygen-free environment, the DOING carbonization furnace automatically heats the agricultural waste to the set temperature (400-700℃) and keeps it warm. During this process, the organic matter in the raw materials will undergo pyrolysis reaction. The products mainly contain biochar, mixed combustible gas, tar, etc. The carbonization time is about 30 minutes.

4. Environmental protection process of agricultural waste products

DOING agricultural waste carbonization equipment is equipped with advanced dust removal, decking and purification devices, which can treat the combustible gas and tar in the product. The purified combustible gas can be used as fuel to provide part of the energy for the operation of the equipment itself, realize the recycling of energy, ensure that the discharged gas meets environmental protection standards, and reduce pollution to the environment.

5. Cooling biochar

Cooling device of DOING agricultural waste carbonization equipment

The temperature of the newly produced biochar is high and needs to be cooled to prevent spontaneous combustion. DOING uses a water cooling device to use circulating water to quickly cool the biochar to room temperature to prevent cracks or performance damage in the biochar due to uneven cooling, laying a solid foundation for subsequent processing.

6. Reprocessing biochar

Biochar briquette machine of biochar production from agricultural waste

The cooled biochar is reprocessed according to the application requirements. If you have requirements for the shape of biochar, you can buy biochar briquette machine  to shape the product carbon. When biochar is used for soil improvement, the particle size is ground to 0.1-1 mm with grinding equipment to increase the contact area with the soil and improve the improvement effect. When biochar is used in the adsorption field, chemical activation is adopted, such as soaking in potassium hydroxide solution and high-temperature secondary heat treatment to expand the pore structure and enhance the adsorption performance.

7. Biochar packaging process

Biochar packaging of biochar production from agricultural waste

After the biochar is reprocessed, it is packaged. The packaging material is selected according to the purpose and storage requirements. Agricultural biochar mostly uses 25 kg or 50 kg moisture-proof woven bags for easy handling and use; industrial adsorption biochar is vacuum-packed in plastic bags with good sealing to prevent the adsorption of impurities. After packaging, a label with the product name, specifications, and production date is affixed for easy storage, transportation and sales.

DOING biochar production from agricultural waste manufacturer

The above is the whole process of converting agricultural waste into biochar, among which the selection of equipment is particularly critical. Henan DOING Company has 14 years of production, exportation and installation experience. Whether it is processing various agricultural wastes such as straw, rice husks or peels, DOING agricultural waste carbonization equipment can show good applicability and can accurately control key parameters such as temperature and time to ensure efficient production of biochar.

If you need to make raw materials into biochar, you can send us pictures and processing volume. Our project manager will provide you with suitable solutions, relevant cases, and quotations according to your requirements to help you carry out biochar business efficiently.
